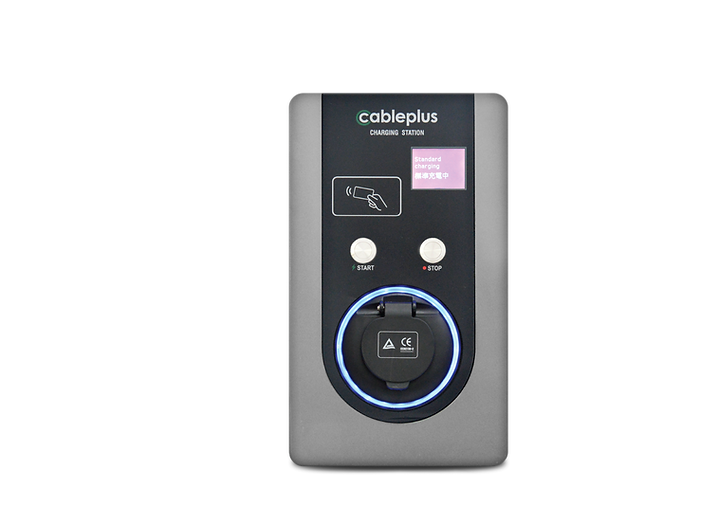

Single phase medium charge & 22kW three phase fast charge
SINGLE MODE
Safety Compliance: IEC 61851, CE, GB
-
Power socket lock
-
Automatic cut-off when battery is full
-
Fault diagnosis and automatic circuit breaking
-
Circuit breaker and external earth leakage protection preventing charger from overload, short circuit and insulation fault
Compatible to most Electric vehicles
(Tesla, BMW, Volkswagen, Nissan, Renault and BYD etc)
User friendly interface
LED display
Push button model or
NFC activated model available
Easy installation
Wall mount and
pole-mount version available
SPECIFICATION
DIMENSIONS
330 x 190 x 118 mm
MATERIALS
Aluminum die-cast casing
CONNECTION
IEC type 2
WEIGHT
4.8 kg
OPERATIONAL CONDITION
Temperature: -30 to 50 ℃
Altitude: 0 - 2,000 m
Humidity: <= 95%
DESIGN
IP54 waterproofed
suitable for outdoor usage
FREQUENCY
50Hz ± 1%
Current: 32A
1 PHASE
Voltage: 220VAC ± 10%
Power: 7kW
3 PHASE
Voltage: 380VAC ± 10%
Power: 22kW
CLIENTS
MULITIPLE MOUNTING OPTIONS
Single pedestal
Double pedestal
Wall mount
SPECIFICATION
DIMENSIONS
330 x 190 x 118 mm
MATERIALS
Aluminum die-cast casing
WEIGHT
4.8 kg
DESIGN
IP54 waterproofed
suitable for outdoor usage
FREQUENCY
50Hz ± 1%
Current: 32A
OPERATIONAL CONDITION
Temperature: -30 to 50 ℃
Altitude: 0 - 2,000 m
Humidity: <= 95%
CONNECTION
IEC type 2
1 PHASE
Voltage: 220VAC ± 10%
Power: 7kW
3 PHASE
Voltage: 380VAC ± 10%
Power: 22kW
